Featured OEM Bike Light & Mount Solutions
Direct factory production lines engineered for extreme vibration tolerance, IPX6/IPX7 waterproofing, and universal cockpit mounting.
Technical White Paper: Engineering Standards for OEM GoPro Bike Mount Architecture
As modern cycling technology transitions toward integrated carbon cockpits, high-output action cameras, and smart lighting systems, the humble mount has evolved into a critical mechanical component. Procurement teams and brand managers face complex engineering trade-offs between dynamic load capacity, structural fatigue life, aerodynamic drag coefficients, and galvanic corrosion resistance when specifying Custom OEM GoPro Bike Mounts.
This technical white paper establishes the baseline criteria for engineering procurement teams evaluating custom bicycle mount production lines, precision CNC tooling, and material science choices. Shenzhen QUZR Technology Co., Ltd. brings over 15 years of dedicated R&D in cycling accessories, lighting optics, and aluminum hardware components, serving as an authoritative manufacturing partner for world-class brands across North America, Western Europe, and Asia-Pacific.
1. Material Structural Science
Comparative analysis of AL6061-T6, AL7075-T6 billet aluminum, and glass-fiber reinforced polymer (PA66-GF30). Optimizing ultimate tensile strength (UTS) against rotational shear stress under extreme terrain vibrations.
2. Dynamic Vibration & Fatigue
Fast-Fourier Transform (FFT) dynamic stress testing under continuous 15Hz to 60Hz mechanical oscillations. Mitigating micro-fractures in out-front computer mounts under heavy camera payloads.
3. Anodizing & Surface Integrity
MIL-A-8625 Type III Hard Anodizing standards (25–50µm coating thickness) to prevent surface degradation, salt spray corrosion, and galvanic reactivity against raw carbon fiber handlebars.
Comparative Engineering Analysis: Billet Aluminum vs. Composite Polymer
Choosing the correct material matrix dictates the product positioning, tooling investment, and long-term durability of the mount assembly. Below is an engineering benchmark used by our OEM/ODM design team during initial product feasibility studies:
| Mechanical Parameter | CNC Machined AL6061-T6 | CNC Machined AL7075-T6 | Injection Molded PA66-GF30 |
|---|---|---|---|
| Yield Strength (MPa) | 276 MPa | 503 MPa | 140 MPa |
| Density / Weight Index | 2.70 g/cm³ (Standard) | 2.81 g/cm³ (High Strength) | 1.35 g/cm³ (Ultra Lightweight) |
| Thermal Stability Range | -50°C to +180°C | -50°C to +160°C | -30°C to +110°C |
| Galvanic Potential vs Carbon | Requires Anodized Barrier (-0.68V) | Requires Anodized Barrier (-0.60V) | Inert / Non-Conductive |
| Tooling Lead Time / NRE Cost | Zero NRE (Direct 5-Axis CNC) | Zero NRE (Direct 5-Axis CNC) | High NRE (Steel Mold Fabrication) |
| Optimal OEM Volume Application | Low-to-Mid (500–10,000 units) | Pro-Level / Premium Boutique | Mass Market (>20,000 units) |
Future Procurement & Design Trends in Cycling Mount Ecosystems (2025–2030)
The global cycling accessories market is experiencing a profound shift toward unified cockpit integration, aerodynamic drag reduction, and multi-functional modularity. Based on empirical trade data and continuous collaborative projects with top-tier international distributors, Shenzhen QUZR Technology Co., Ltd. highlights four decisive manufacturing trends that will shape B2B purchasing strategies through 2030:
1. Aerodynamic Integrated Cockpit Architecture
Modern road, gravel, and time-trial frames feature integrated aero handlebars with hidden internal cable routing. Traditional 31.8mm round clamp mounts are rapidly being replaced by under-bar direct-mount systems (such as dual bolt underside fixing points). Custom OEM GoPro mounts must now feature adjustable pitch angles, custom bolt spacing (from 12mm to 38mm center-to-center), and ultra-low frontal profile drag metrics.
2. Dual-Quarter-Turn & GoPro Combo Ecosystems
Riders no longer carry a single device. The standard modern setup combines a GPS cycle computer (Garmin, Wahoo, Bryton) on the upper surface with a GoPro camera or high-lumen bike headlight mounted directly underneath. OEM factories must precision-machining dual-sided mounts that support high torque retention without transferring micro-vibrations into camera optical image stabilization (OIS) mechanisms.
3. Additive Manufacturing (3D Printing) & Custom Titanium Matrix

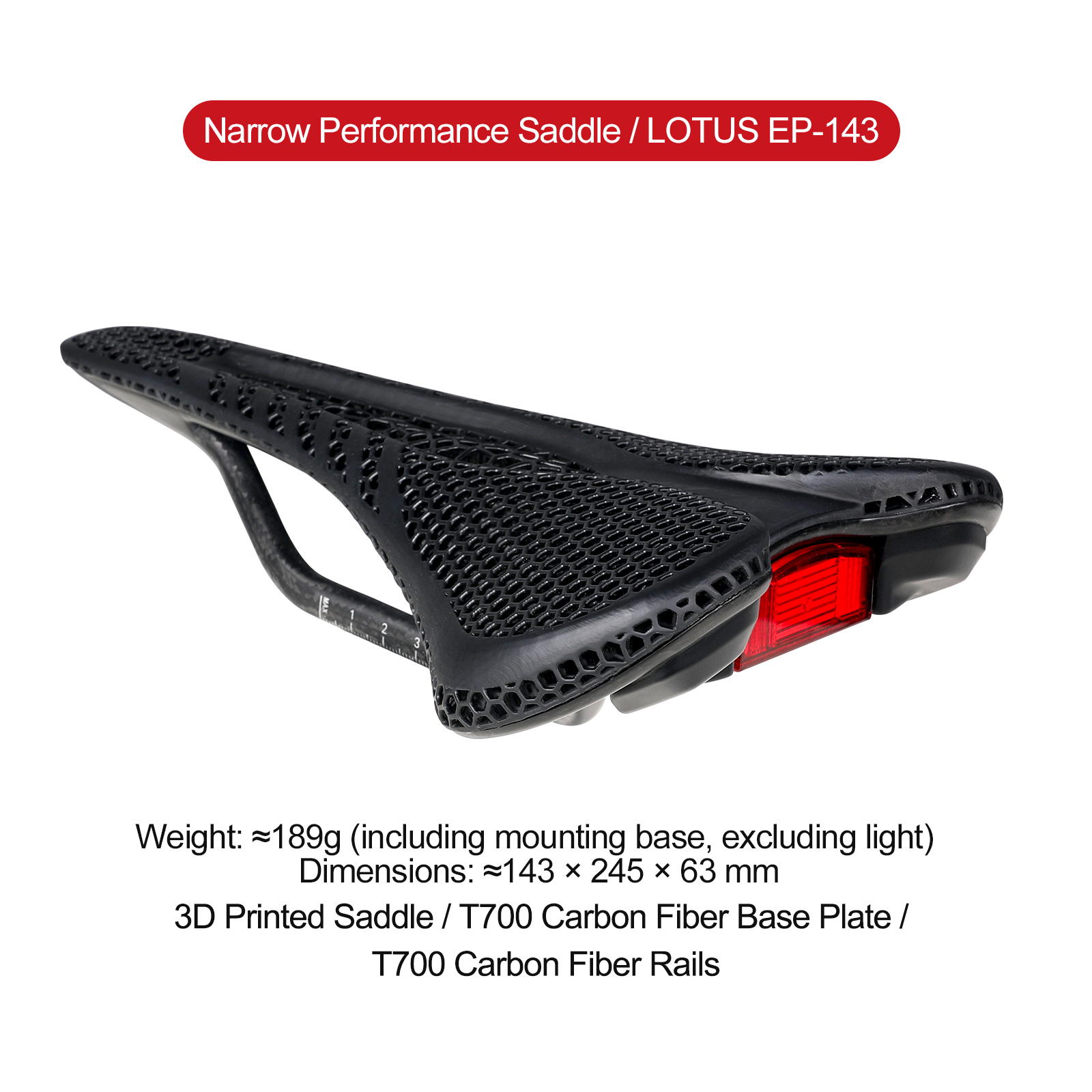

Selective Laser Sintering (SLS) and Direct Metal Laser Sintering (DMLS) using Titanium (Ti-6Al-4V) are enabling ultra-lightweight, organic-shaped mounts that were previously impossible with traditional 3-axis or 5-axis CNC milling. As a forward-thinking facility, Shenzhen QUZR incorporates 3D printed components—exemplified by our Gaciron EP-143 Carbon Saddle with Integrated Light—paving the way for hyper-customized OEM bracket geometries.
4. E-Bike System Integration & Direct Power Pass-Through
With the exponential growth of Urban and Mountain E-Bikes, mounting hardware is increasingly expected to serve as a structural pass-through for direct power wiring. Future-proof GoPro mounts incorporate direct USB-C or wire-harness routing, allowing action cameras or smart LED lights to power directly off the e-bike’s main battery system.
Enterprise Strengths: Shenzhen QUZR Technology Co., Ltd.
Your Trusted B2B Manufacturing Partner for Custom Bike Mounts, Smart Lights, and CNC Accessories
State-of-the-Art Infrastructure
Operating a 9,350 square meter manufacturing center equipped with over 50 precision CNC machining centers, automated anodizing lines, and 8 standardized dust-free assembly workshops.
In-House Optical & R&D Engineering
Our dedicated team of industrial designers, optical technicians, and firmware developers handles end-to-end ODM projects from 3D CAD rendering to rapid 72-hour physical prototyping.
Rigorous Quality Control & Compliance
Every batch undergoes strict salt spray corrosion tests, 3D coordinate dimensional validation, IPX6/IPX7 waterproof testing, and high-frequency dynamic shaker vibration tests before dispatch.
Frequently Asked Questions (FAQ) for B2B Sourcing Managers
Clear answers regarding OEM/ODM customization, MOQ, production timelines, and engineering specs.
What is the Minimum Order Quantity (MOQ) for custom logo branding versus full custom tooling?
For standard stock models with laser-engraved custom logos or custom colorways, our baseline MOQ starts as low as 20 to 100 units depending on the model. For full ODM projects requiring custom CNC extrusion tooling or plastic injection molds, MOQs typically begin at 1,000 to 3,000 units depending on material specifications and mold engineering requirements.
How does your factory test for vibration fatigue and mount failure on rough terrain?
We utilize multi-axis electromagnetic shaker tables to simulate thousands of kilometers of rough cobblestone, gravel, and aggressive downhill mountain bike conditions. Tests run continuously at frequencies between 10Hz and 50Hz carrying twice the maximum rated payload weight (e.g., a 500g load for GoPro + heavy light combinations) to ensure zero fatigue fracturing or bolt loosening.
Can you manufacture universal mounts that fit both GoPro ecosystem prongs and quarter-turn GPS units?
Yes. Our primary modular architecture features dual-sided or adapter-swap interfaces. The top side supports replaceable pucks for Garmin, Wahoo, or Bryton computers, while the bottom side incorporates standard 3-prong GoPro interface lugs milled directly from AL6061-T6 aluminum or molded from impact-resistant polyamides.
What surface finishing options are available for custom brand matching?
We offer Type II and Type III Anodizing in a variety of custom Pantone colors, including matte sandblasted black, gloss black, silver, anodized oil slick/rainbow, and vibrant brand colors. We also provide high-precision fiber laser engraving for logos, torque specs, and alignment scale markings.
What are your typical production lead times for OEM sample development and mass orders?
Rapid CNC prototyping samples are completed within 5 to 7 working days. Once samples and technical drawings are approved, mass production lead times generally range between 20 to 35 calendar days depending on order volume, surface treatment requirements, and customized packaging specs.
Which trade terms and delivery methods does Shenzhen QUZR Technology support?
We support all standard international trade terms including FOB (Shenzhen/Hong Kong), EXW, CIF, CFR, FCA, and DDP (Delivered Duty Paid directly to your warehouse). We accept T/T wire transfer, L/C, PayPal, and credit card payments across major currencies including USD, EUR, GBP, JPY, and AUD.
